FortiGate | SDWAN VPN IPSec Site-to-Site Full Configuration



Berikut Konfigurasi masing-masing perangkat.
Router R2
hostname C-MPLS
!
ip name-server 8.8.8.8
ip name-server 8.8.1.1
!
interface Ethernet0/0
 description LINK-HQ-FW_port3
 ip address 10.10.0.1 255.255.255.0
 ip nat inside
 no shut
 exit
!
interface Ethernet0/1
 description description LINK-HQ-FW_port4
 ip address 10.20.0.1 255.255.255.0
 ip nat inside
 no shut
 exit
!
interface Ethernet0/2
 description description LINK-BRANCH-FW_port3
 ip address 10.10.1.1 255.255.255.0
 ip nat inside
 no shut
 exit
!
interface Ethernet0/3
 description description LINK-BRANCH-FW_port4
 ip address 10.20.1.1 255.255.255.0
 ip nat inside
  no shut
 exit
!
interface Ethernet1/0
 ip address 10.0.137.253 255.255.255.0
 ip nat outside
 no shut
 exit
!
router ospf 1
 network 0.0.0.0 255.255.255.255 area 0
!
ip nat inside source list 1 interface Ethernet1/0 overload
ip route 0.0.0.0 0.0.0.0 10.0.137.1
!
access-list 1 permit 10.10.0.0 0.0.0.255
access-list 1 permit 10.20.0.0 0.0.0.255
access-list 1 permit 10.10.1.0 0.0.0.255
access-list 1 permit 10.20.1.0 0.0.0.255

HQ-FW -SDWAN INTERNET
IP Interface

SD-WAN Zone --> Member

Static Route --> SDWAN

SDWAN Performance-SLA Internet

SDWAN Rules Internet

Firewall Policy

VERIFIKASI:
Testing ping 8.8.8.8 (google) dari firewall dan dari PC-HQ, pastikan sdh reply

HQ-FW -VPN
VPN --> IPsec Wizard |
VPN1

VPN --> IPsec Wizard | VPN2

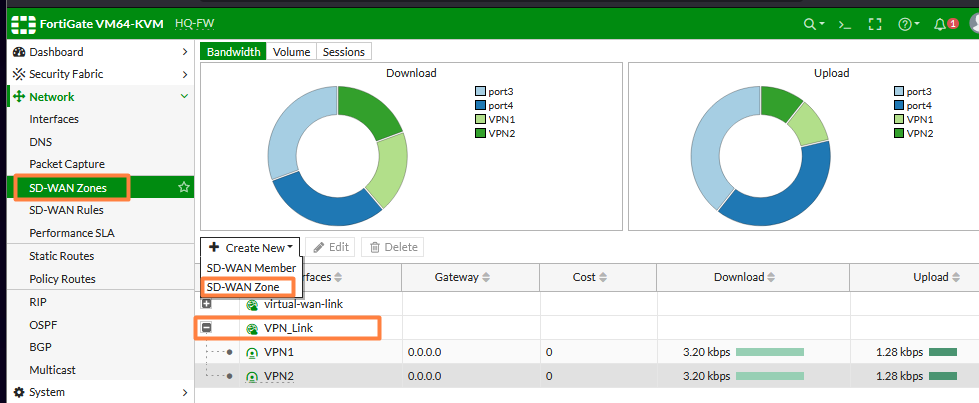

SD-WAN Zone (VPN), --> Create New --> Zone, Ketik nama zone-nya VPN_Link

Performance SLA VPN

SDWAN Rule VPN

Dan hasilnya sebagai berikut:

Firewall Policy Rule (Ijinkan akses dari LAN-HQ to Cabang)

Firewall Policy Rule (Ijinkan akses dari  Cabang to LAN-HQ )

Tambahkn konfigurasi ini dibagian SD-WAN-->Member

***Lakukan hal yang sama di firewall Branch
VERIFIKASI VPN

VERIFIKASI SDWAN

Ping dari PC-HQ

Log
