Cisco | Nexus vPC - Multi-vPC Back To Back - Single Link

Konfigurasi:
N7K-01
----
feature vpc
vrf context VPC_KA

interface eth1/1
no switchport
vrf member VPC_KA
ip address 10.1.2.1/24
no shutdown

vpc domain 1
peer-keepalive destination 10.1.2.2 source 10.1.2.1 vrf VPC_KA
peer-switch
peer-gateway

feature lacp
interface eth1/2
no shut
channel-group 1 mode active

interface eth1/3
no shut
channel-group 1 mode active

interface port-channel 1
no shut
switchport mode trunk
vpc peer-link

interface eth1/4
channel-group 2 mode active
no shutdown

interface eth1/5
channel-group 2 mode active
no shutdown

interface port-channel 2
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
no shutdown

N7K-02
feature vpc
vrf context VPC_KA

interface eth1/1
no switchport
vrf member VPC_KA
ip address 10.1.2.2/24
no shutdown

vpc domain 1
peer-keepalive destination 10.1.2.1 source 10.1.2.2 vrf VPC_KA
peer-switch
peer-gateway
exit

feature lacp
interface eth1/2
no shut
channel-group 1 mode active

interface eth1/3
no shut
channel-group 1 mode active

interface port-channel 1
no shut
switchport mode trunk
vpc peer-link

interface eth1/4
channel-group 2 mode active
no shutdown

interface eth1/5
channel-group 2 mode active
no shutdown

interface port-channel 2
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
no shutdown

N7K-03
feature vpc
vrf context VPC_KA2

interface eth1/5
no switchport
vrf member VPC_KA2
ip address 10.2.2.1/24
no shutdown

vpc domain 2
peer-keepalive destination 10.2.2.2 source 10.2.2.1 vrf VPC_KA2
peer-switch
peer-gateway

feature lacp
interface eth1/3
no shut
channel-group 1 mode active

interface eth1/4
no shut
channel-group 1 mode active

interface port-channel 1
no shut
switchport mode trunk
vpc peer-link

interface eth1/1
no shut
channel-group 2 mode active
no shutdown

interface eth1/2
no shut
channel-group 2 mode active
no shutdown

interface port-channel 2
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
no shutdown

interface eth1/6
no shut
channel-group 3 mode active
no shutdown

interface eth1/7
no shut
channel-group 3 mode active
no shutdown

interface port-channel 3
switchport mode trunk
switchport trunk allowed vlan all
vpc 3
no shutdown

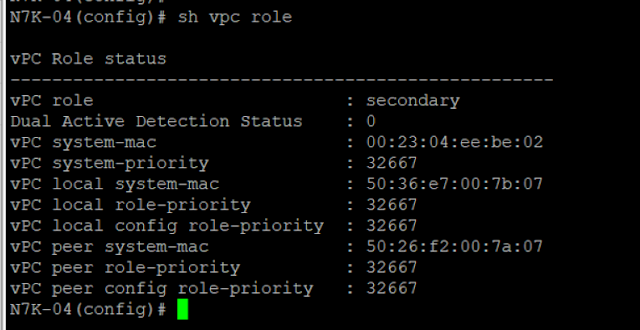

N7K-04
feature vpc
vrf context VPC_KA2

interface eth1/5
no switchport
vrf member VPC_KA2
ip address 10.2.2.2/24
no shutdown

vpc domain 2
peer-keepalive destination 10.2.2.1 source 10.2.2.2 vrf VPC_KA2
peer-switch
peer-gateway

feature lacp
interface eth1/3
no shut
channel-group 1 mode active

interface eth1/4
no shut
channel-group 1 mode active

interface port-channel1
no shut
switchport mode trunk
spanning-tree port type network
vpc peer-link

interface eth1/1
no shut
channel-group 2 mode active
no shutdown

interface eth1/2
no shut
channel-group 2 mode active
no shutdown

interface port-channel 2
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
no shutdown

interface eth1/6
no shut
channel-group 3 mode active
no shutdown

interface eth1/7
no shut
channel-group 3 mode active
no shutdown

interface port-channel 3
switchport mode trunk
switchport trunk allowed vlan all
vpc 3
no shutdown

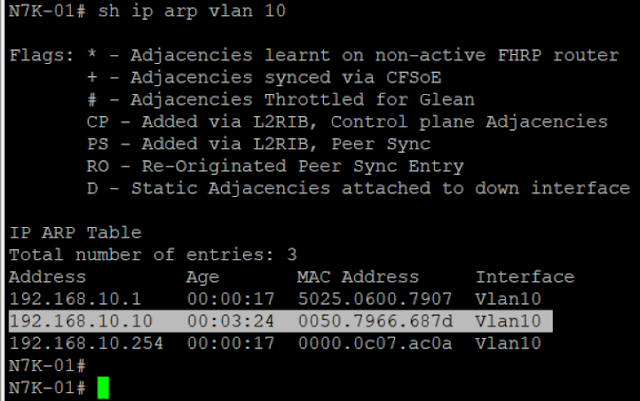

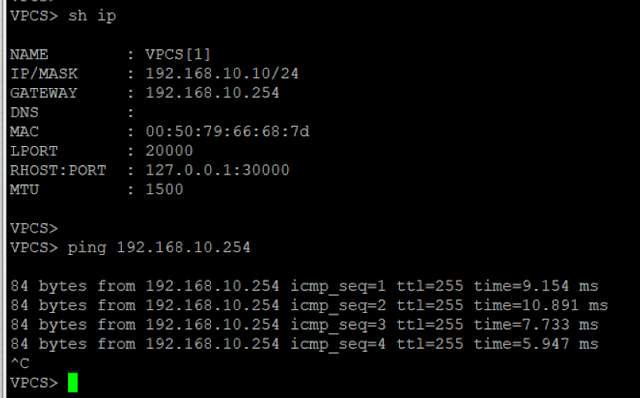

TAMBAHAN: Konfigurasi SVI interface di N7K-01 dan N7K-02
N7K-01
feature hsrp
feature interface-vlan
vlan 10

interface vlan10
no shutdown
ip address 192.168.10.1/24
hsrp 10
priority 150
timers 1 3
ip 192.168.10.254
exit

N7K-02
feature hsrp
feature interface-vlan

vlan 10
interface vlan10
no shutdown
ip address 192.168.10.2/24
hsrp 10
priority 100
timers 1 3
ip 192.168.10.254
exit
