Cisco | Nexus vPC - Multi-vPC Back To Back - Multi Link

N7K-01
interface eth1/4
no shut
channel-group 2 mode active
no shutdown

interface eth1/6
no shut
channel-group 2 mode active
no shutdown

interface port-channel 2
no shutdown
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
exit

interface eth1/5
no shut
channel-group 3 mode active
no shutdown

interface eth1/7
no shut
channel-group 3 mode active
no shutdown

interface port-channel 3
no shutdown
switchport mode trunk
switchport trunk allowed vlan all
vpc 3

N7K-02
interface eth1/5
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 3 mode active
no shutdown

interface eth1/7
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 3 mode active
no shutdown

interface port-channel 3
no shutdown
switchport mode trunk
switchport trunk allowed vlan all
vpc 3
exit

interface eth1/4
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 2 mode active
no shutdown

interface eth1/6
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 2 mode active
no shutdown

interface port-channel 2
no shutdown
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
exit

N7K-3
interface eth1/1
no shut
channel-group 2 mode active
no shutdown

interface eth1/6
no shut
channel-group 2 mode active
no shutdown

interface port-channel 2
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
no shutdown

interface eth1/2
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 3 mode active

interface eth1/7
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 3 mode active

interface port-channel 3
switchport mode trunk
switchport trunk allowed vlan all
vpc 3
no shutdown

N7K-4
interface eth1/1
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 3 mode active
exit

interface eth1/7
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 3 mode active
exit

interface port-channel 3
switchport mode trunk
switchport trunk allowed vlan all
vpc 3
no shutdown

interface eth1/2
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 2 mode active

interface eth1/6
no shut
switchport mode trunk
switchport trunk allowed vlan all
channel-group 2 mode active

interface port-channel 2
switchport mode trunk
switchport trunk allowed vlan all
vpc 2
no shutdown

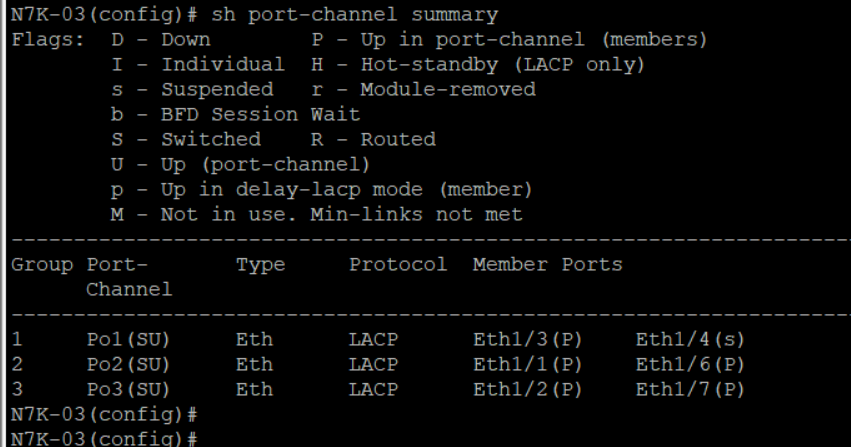

VERIFIKASI
N7K-01

N7K-02

N7K-03

N7K-04

PENGETESAN DARI SERVER KE GATEWAY
1.Konfig port eth1/8 di N7K-03 dan N7K-04
interface Ethernet1/8
no shut
switch access mode access
switchport access vlan 10

2. Lakukan seting ethernet NIC-Teaming di sisi windows server dan set IP di NIC teaming (buat bounding active-active).
