Cisco | WLC c9800 Administration

Interface WLC (ethernet)

Interface WLC Por-Channel

Interface WLC Wireless Management

Routing Default

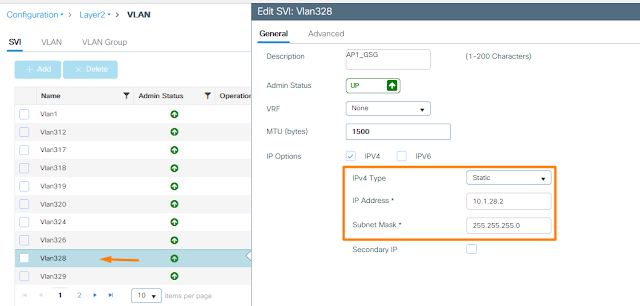

1. Create SVI -> Configuration| Layer2 | SVI

2. Create VLAN
Configuration| Layer2 | VLAN
VLAN ID: 328
Name   : AP1_GSG
IGMP Snooping: ENABLED

VLAN ID: 329
Name   : AP1_GSG_5G
IGMP Snooping: ENABLED

3. Create Policy
Configuration| Tags & Profiles | Policy
General:  Name: FlexGSGAP1 | Status: ENABLE
Central Aurhentication: ENABLED
Access Polices:
VLAN & VLAN Group : AP1_GSG
Advanced: Flex DHCP Option for DNS: ENABLED | Client Exclusion

Timeout (sec) 180

4. Create Flex

Configuration| Tags & Profiles | Flex
General Name*: FlexGSG | Native VLAN ID : 309
ARP Caching : √
Efficient Image Upgrade : √ |  RADIUS : √
VLAN  VLAN Name :
AP1_GSG
AP1_GSG_5G

Noted: VLAN bisa dibuat lebih dari 2 vlan, dgnc ara klik Add
VLAN Name* :
VLAN Id* :


NEXT

5.Create Tag
Configuration| Tags & Profiles | Tags
Policy
Name* : GSG_SSID
WLAN-POLICY Maps: Lalu tambah WLAN nya, i.e:
WLAN Profile           Policy Profile
-----------             --------------
AP1_GSG                FlexGSGAP1
AP1_GSG_5G           FlexGSGAP5G
ICT

Site
Configuration | Tags & Profiles | Tags
AP | Static
AP MAC Address* : Enter MAC Address

Configuration| Tags & Profiles | Tags
AP
Name* : GSG_SSID
Flex Profile    : FlexGSG



6. Create WLANs
Configuration| Tags & Profiles | WLANs
Profile Name*    : APS_GSG
SSID*              : ANGKASAPURA1_GSG
Status              : ENABLE
Broadcast SSID: ENABLED
2.4GHz            : ENABLED

Security L2
WPA2 Policy    : √
WPA2 Encryption : √ AES(CCMP128)
Auth Key Mgmt    : √ PSK
PSK Format    : ASCII
Pre-Shared Key* : ******** (password)

Add TO Policiy Tags (Bisa lebih dari 2 Polciy Tag)
Policy Tag        Policy Profile
--------------         -------------
GSG_SSID        FlexGSGAP1

7. Joint AP to WLC | JOINT WLC (BERHASIL)
capwap ap primary-base HQ-WLC-GA01-LT.3 10.1.12.100

8. Pointing SSID ke AP
Configuration | Wireless | Access Point
Misal AP nya: HQ-AP-GSG04-LT.1
General
Name   *            : HQ-AP-GSG04-LT.1
Admin Status     : ENABLED
State                : ENABLED
LED                  : ENABLED
AP Mode           : Flex
Policy               : GSG_SSID
Site                 : FlexGSG
IP Config (Static) : 10.1.9.13 Gateway : 10.1.9.1
Country Code* : ID
Server IP *        : 10.1.12.100   (IP WLC)

High Availability
Primary Controller
Name : HQ-WLC-GA01-LT.3        IP: 10.1.12.100

9. Konfigurasi IP Vlan di Core-Switch (diman core dan WLC link P2P)

10. Konfigurai disis core-sw pd interface ethernet port link to WLC
interface Ethernet1/9
  description Link to HQ-WLC-GA01-LT.3 Port Ten0/0/2
  switchport
  switchport mode trunk
  storm-control broadcast level 20.00
  channel-group 12 mode active
  no shutdown
!
interface Ethernet1/10
  description Link to HQ-WLC-GA01-LT.3 Port Ten0/0/3
  switchport
  switchport mode trunk
  storm-control broadcast level 20.00
  channel-group 12 mode active
  no shutdown
!
interface port-channel12
  switchport
  switchport mode trunk
  storm-control broadcast level 20.00
