Cisco | MPLS - L2VPN/VPLS - Enterprise Network

Oleh Hasugian Posting Komentar

Jumpa lg di blog kita, kembali sy akan nulis (dari kemaren ke tunda trus) dikarenakan ahir2 ini rada-rada sibuk, dgn kerja dan bantu2 projek tman (helper 😏). Postingan ini adalah salah topologi jaringan yg pernah sy handle di tempat kerja lama (tdk udah sebutin nama ya). Topologi diatas adalah topologi coren-etwork/backbone router ntk menghubungkan jaringan antar-cabang dalam satu kota (network enterprise) . Semua kantor terhubung melalui core network router. Adapun type  perangkat router-nya adalah type ASR. Disini menggunakan layanan MPLS -L2VPn dengan serice VPLS.

Virtual Private LAN Service atau disingkat VPLS merupakan multipoint VPN layer 2 yang menyediakan sebuah mekanisme yang memberikan kemampuan TLS (Transparent LAN Service) di seluruh jaringan IP atau MPLS, sehingga seluruh client yang menggunakan VPLS akan terlihat berada pada jaringan LAN (Local Area Network) yang sama.

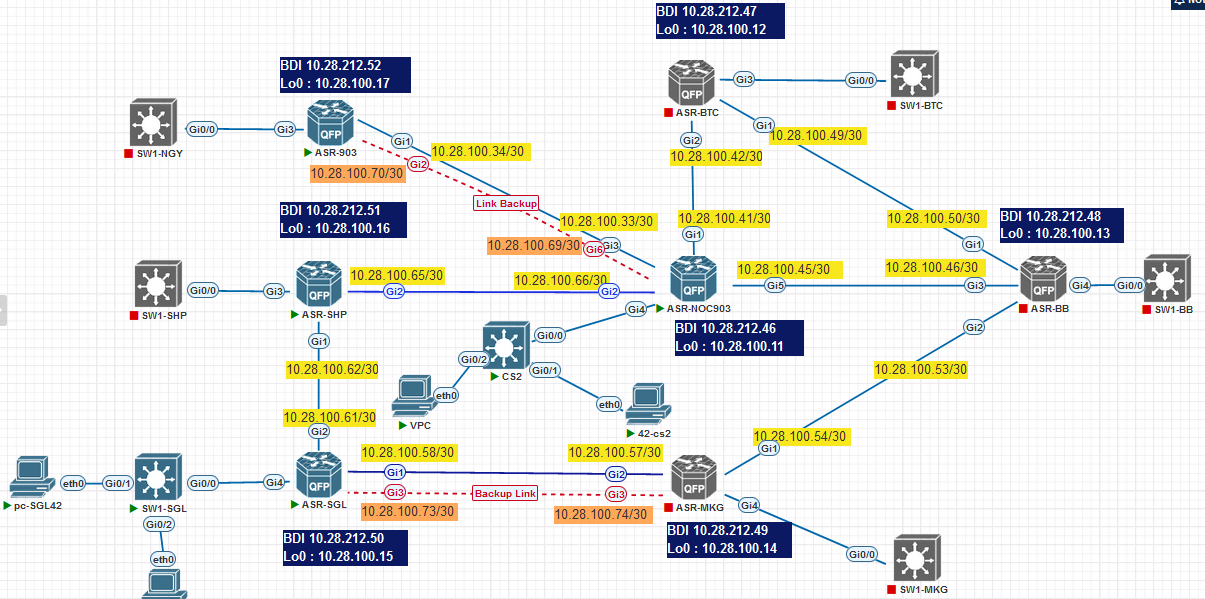

Berikut konfigurasi IP address dimaing-masing perangkat

Komponen Perangkat Jaringan didalam LAB ini
Backbon Network (Router ASR 903, 920)
Core Switch (Cat4500)
Distribution Switch (Cat35xx
Access Switch (Cat29xx, Cisco SGxx)

Protocol
IGP = OSPF
EGP =  iBGP

Router ASR-NOC903
host ASR-NOC-903
int l0
ip add 10.28.100.11 255.255.255.255
exi

int bdi80
ip add 10.28.212.46 255.255.255.0
no shu

int gi3
ip add 10.28.100.33 255.255.255.252
no sh
exi

int gi5
ip add 10.28.100.45 255.255.255.252
shutdow
exi

int gi1
ip add 10.28.100.41 255.255.255.252
no sh
exi

int gi2
ip add 10.28.100.66 255.255.255.252
no shut
desc ##LINK TO SHP##
exi

int gi6
ip add 10.28.100.69 255.255.255.252
no shu
exi

int bdi80
ip add 10.28.212.46 255.255.255.0
no shu
exi
do wr
------------
host ASR-NGY-920
int l0
ip add 10.28.100.17 255.255.255.255
exi

int bdi80
ip add 10.28.212.52 255.255.255.0
no shu

int gi2
ip add 10.28.100.70 255.255.255.252
no shut
desc ##Backup Link to NOC##
exi

int gi1
ip add 10.28.100.34 255.255.255.252
no sh
exi
do wr
-------------
host ASR-BTC-920
int l0
ip add 10.28.100.12 255.255.255.255
exi

int bdi80
ip add 10.28.212.47 255.255.255.0
no shu
exi

int gi2
 ip add 10.28.100.42 255.255.255.252
 no sh
 exi

int gi1
ip add 10.28.100.49 255.255.255.252
no sh
exi
do wr
--------------
host ASR-BB-902
int l0
ip add 10.28.100.13 255.255.255.255
exi

int bdi80
ip add 10.28.212.48 255.255.255.0
no shu
exi

int gi1
 ip add 10.28.100.50 255.255.255.252
 no sh
 exi

int gi2
 ip add 10.28.100.53 255.255.255.252
 no sh
 exi

int gi3
ip add 10.28.100.46 255.255.255.252
shut
exi
do wr
----------------------
host ASR-MKG-902
int l0
ip add 10.28.100.14 255.255.255.255
exi

int bdi80
ip add 10.28.212.49 255.255.255.0
no shu
exi

int gi1
 ip add 10.28.100.55 255.255.255.252
 no sh
 exi

int gi2
 ip add 10.28.100.57 255.255.255.252
 no sh
 exi

int gi3
 ip add 10.28.100.74 255.255.255.252
 shut
 descr #Link back to SGL##
 exi
do wr
----------------------
host ASR-SGL-902
int l0
ip add 10.28.100.15 255.255.255.255
exi

int bdi80
ip add 10.28.212.50 255.255.255.0
no shu
exi

int gi1
 ip add 10.28.100.58 255.255.255.252
 no sh
 exi

int gi2
 ip add 10.28.100.61 255.255.255.252
 no sh
 exi

int gi3
 ip add 10.28.100.73 255.255.255.252
 no shut
 descr #Link back to MKG ##
 exi
do wr

----------------
host ASR-SHP-902
int l0
ip add 10.28.100.16 255.255.255.255
exi

int bdi80
ip add 10.28.212.51 255.255.255.0
no shu
exi

int gi1
 ip add 10.28.100.62 255.255.255.252
 no sh
 exi

int gi2
 ip add 10.28.100.65 255.255.255.252
 no sh
 exi
do wr
===========================

TAHAP 2 : ROUTING IGP (OSPF)
ROUTER ASR-NOC-903
router ospf 1
 network 10.28.100.11 0.0.0.0 area 0
 network 10.28.100.33 0.0.0.0 area 0
 network 10.28.100.41 0.0.0.0 area 0
 network 10.28.100.45 0.0.0.0 area 0
 network 10.28.100.66 0.0.0.0 area 0
 network 10.28.100.69 0.0.0.0 area 0
 mpls ldp autoconfig
 exit
!
ROUTER ASR-NGY-920
router ospf 1
 network 10.28.100.17 0.0.0.0 area 0
 network 10.28.100.34 0.0.0.0 area 0
 network 10.28.100.70 0.0.0.0 area 0
 mpls ldp autoconfig
 exit
!
ROUTER ASR-BTC-920
router ospf 1
 network 10.28.100.12 0.0.0.0 area 0
 network 10.28.100.42 0.0.0.0 area 0
 network 10.28.100.49 0.0.0.0 area 0
 mpls ldp autoconfig
 exit
!
ROUTER ASR-BB-920
router ospf 1
 network 10.28.100.13 0.0.0.0 area 0
 network 10.28.100.46 0.0.0.0 area 0
 network 10.28.100.50 0.0.0.0 area 0
 network 10.28.100.53 0.0.0.0 area 0
 mpls ldp autoconfig
 exit
!
ROUTER ASR-MKG-920
router ospf 1
 network 10.28.100.14 0.0.0.0 area 0
 network 10.28.100.54 0.0.0.0 area 0
 network 10.28.100.57 0.0.0.0 area 0
 network 10.28.100.74 0.0.0.0 area 0
 mpls ldp autoconfig
 exit
!
ROUTER ASR-SGL-920
router ospf 1
 network 10.28.100.15 0.0.0.0 area 0
 network 10.28.100.58 0.0.0.0 area 0
 network 10.28.100.61 0.0.0.0 area 0
 network 10.28.100.73 0.0.0.0 area 0
 mpls ldp autoconfig
 exit
!
ROUTER ASR-SHP-920
router ospf 1
 network 10.28.100.16 0.0.0.0 area 0
 network 10.28.100.62 0.0.0.0 area 0
 network 10.28.100.65 0.0.0.0 area 0
 mpls ldp autoconfig
exit
===============================================
TAHAP 3 : iBGP (advertises IP loopback)
ASR-NOC903

router bgp 65010
 bgp router-id 10.28.100.11
 bgp log-neighbor-changes
 no bgp default route-target filter
 neighbor iBGP peer-group
 neighbor iBGP remote-as 65010
 neighbor iBGP update-source Loopback0
 neighbor 10.28.100.12 peer-group iBGP
 neighbor 10.28.100.13 peer-group iBGP
 neighbor 10.28.100.14 peer-group iBGP
 neighbor 10.28.100.15 peer-group iBGP
 neighbor 10.28.100.16 peer-group iBGP
 neighbor 10.28.100.17 peer-group iBGP
 !
 address-family ipv4
  neighbor iBGP route-reflector-client
  neighbor 10.28.100.12 activate
  neighbor 10.28.100.13 activate
  neighbor 10.28.100.14 activate
  neighbor 10.28.100.15 activate
  neighbor 10.28.100.16 activate
  neighbor 10.28.100.17 activate
 exit-address-family
 !
 address-family l2vpn vpls
  neighbor iBGP send-community extended
  neighbor iBGP route-reflector-client
  neighbor iBGP suppress-signaling-protocol ldp
  neighbor 10.28.100.12 activate
  neighbor 10.28.100.13 activate
  neighbor 10.28.100.14 activate
  neighbor 10.28.100.15 activate
  neighbor 10.28.100.16 activate
  neighbor 10.28.100.17 activate
 exit-address-family
 exit
!
ip default-gateway 10.28.212.7
-----------------
ASR-NGY

router bgp 65010
 bgp router-id 10.28.100.17
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.28.100.11 remote-as 65010
 neighbor 10.28.100.11 update-source Loopback0
 !
 address-family ipv4
  neighbor 10.28.100.11 activate
 exit-address-family
 !
 address-family l2vpn vpls
  neighbor 10.28.100.11 activate
  neighbor 10.28.100.11 send-community extended
  neighbor 10.28.100.11 suppress-signaling-protocol ldp
 exit-address-family
 exit
!
ip default-gateway 10.28.212.7

-----------------------
ASR-BTC

router bgp 65010
 bgp router-id 10.28.100.12
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.28.100.11 remote-as 65010
 neighbor 10.28.100.11 update-source Loopback0

 address-family ipv4
  neighbor 10.28.100.11 activate
 exit-address-family

 address-family l2vpn vpls
  neighbor 10.28.100.11 activate
  neighbor 10.28.100.11 send-community extended
  neighbor 10.28.100.11 suppress-signaling-protocol ldp
 exit-address-family
 exit

ip default-gateway 10.28.212.7
-----------------------------------------------

ASR-BB

router bgp 65010
 bgp router-id 10.28.100.13
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.28.100.11 remote-as 65010
 neighbor 10.28.100.11 update-source Loopback0

 address-family ipv4
  neighbor 10.28.100.11 activate
 exit-address-family

 address-family l2vpn vpls
  neighbor 10.28.100.11 activate
  neighbor 10.28.100.11 send-community extended
  neighbor 10.28.100.11 suppress-signaling-protocol ldp
 exit-address-family
 exit
ip default-gateway 10.28.212.7
------------------------
ASR-MKG

router bgp 65010
 bgp router-id 10.28.100.14
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.28.100.11 remote-as 65010
 neighbor 10.28.100.11 update-source Loopback0

 address-family ipv4
  neighbor 10.28.100.11 activate
 exit-address-family

 address-family l2vpn vpls
  neighbor 10.28.100.11 activate
  neighbor 10.28.100.11 send-community extended
  neighbor 10.28.100.11 suppress-signaling-protocol ldp
 exit-address-family
 exit
ip default-gateway 10.28.212.7
----------------------
ASR-SHP

router bgp 65010
 bgp router-id 10.28.100.16
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.28.100.11 remote-as 65010
 neighbor 10.28.100.11 update-source Loopback0

 address-family ipv4
  neighbor 10.28.100.11 activate
 exit-address-family

 address-family l2vpn vpls
  neighbor 10.28.100.11 activate
  neighbor 10.28.100.11 send-community extended
  neighbor 10.28.100.11 suppress-signaling-protocol ldp
 exit-address-family
 exit
ip default-gateway 10.28.212.7
--------------
ASR-SGL

router bgp 65010
 bgp router-id 10.28.100.15
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 neighbor 10.28.100.11 remote-as 65010
 neighbor 10.28.100.11 update-source Loopback0

 address-family ipv4
  neighbor 10.28.100.11 activate
 exit-address-family

 address-family l2vpn vpls
  neighbor 10.28.100.11 activate
  neighbor 10.28.100.11 send-community extended
  neighbor 10.28.100.11 suppress-signaling-protocol ldp
 exit-address-family
 exit
ip default-gateway 10.28.212.7

=========================================
TAHAP 4 : KONFIG VPLS
ASR-NOC903
int gi4
description *LINK TO SW2*
 no ip address
 no shutdown
 service instance 13 ethernet
  encapsulation dot1q 13
  rewrite ingress tag pop 1 symmetric
  exi

 service instance 42 ethernet
  encapsulation dot1q 42
  rewrite ingress tag pop 1 symmetric
 exi

 service instance 80 ethernet
  encapsulation dot1q 80
  rewrite ingress tag pop 1 symmetric
 exi

service instance 11 ethernet
  encapsulation dot1q 11
  rewrite ingress tag pop 1 symmetric
 exi

service instance 12 ethernet
  encapsulation dot1q 12
  rewrite ingress tag pop 1 symmetric
 exi
 exi
----------------
mpls label protocol ldp
multilink bundle-name authenticated
l2vpn vfi context VLAN13
 vpn id 13
 autodiscovery bgp signaling bgp
  ve id 11
  exi
  exi

l2vpn vfi context VLAN42
 vpn id 42
 autodiscovery bgp signaling bgp
  ve id 11
  exi
  exi

l2vpn vfi context VLAN43
 vpn id 43
 autodiscovery bgp signaling bgp
  ve id 11
  exi
  exi

l2vpn vfi context VLAN80
 vpn id 80
 autodiscovery bgp signaling bgp
  ve id 11
  exi
  exi
l2vpn vfi context VLAN11
 vpn id 11
 autodiscovery bgp signaling bgp
  ve id 11
  exi
  exi
l2vpn vfi context VLAN12
 vpn id 12
 autodiscovery bgp signaling bgp
  ve id 11
  exi
  exi
--------------
Next Config bridge-domain

 bridge-domain 43
 member gi4 service-instance 43
 member vfi VLAN43
exit
bridge-domain 42
 member gi4 service-instance 42
 member vfi VLAN42
exit
bridge-domain 80
 member gi4 service-instance 80
 member vfi VLAN80
exit
bridge-domain 11
 member gi4 service-instance 11
 member vfi VLAN11
exit
bridge-domain 12
 member gi4 service-instance 12
 member vfi VLAN12
exit
do wr

ASR-NGY (KONFIG VPLS)
int gi3
description *LINK TO SW-NGY*
 no ip address
 no shutdown
 service instance 13 ethernet
  encapsulation dot1q 13
  rewrite ingress tag pop 1 symmetric
  exi

 service instance 42 ethernet
  encapsulation dot1q 42
  rewrite ingress tag pop 1 symmetric
 exi

 service instance 43 ethernet
  encapsulation dot1q 43
  rewrite ingress tag pop 1 symmetric
  exi

 service instance 80 ethernet
  encapsulation dot1q 80
  rewrite ingress tag pop 1 symmetric
 exi

service instance 11 ethernet
  encapsulation dot1q 11
  rewrite ingress tag pop 1 symmetric
 exi

service instance 12 ethernet
  encapsulation dot1q 12
  rewrite ingress tag pop 1 symmetric
 exi
 exi
----------------
mpls label protocol ldp
multilink bundle-name authenticated
l2vpn vfi context VLAN13
 vpn id 13
 autodiscovery bgp signaling bgp
  ve id 17
  exi
  exi

l2vpn vfi context VLAN42
 vpn id 42
 autodiscovery bgp signaling bgp
  ve id 17
  exi
  exi

l2vpn vfi context VLAN43
 vpn id 43
 autodiscovery bgp signaling bgp
  ve id 17
  exi
  exi

l2vpn vfi context VLAN80
 vpn id 80
 autodiscovery bgp signaling bgp
  ve id 17
  exi
  exi
l2vpn vfi context VLAN11
 vpn id 11
 autodiscovery bgp signaling bgp
  ve id 17
  exi
  exi
l2vpn vfi context VLAN12
 vpn id 12
 autodiscovery bgp signaling bgp
  ve id 17
  exi
  exi
--------------

 bridge-domain 43
 member gi3 service-instance 43
 member vfi VLAN43
exit
bridge-domain 42
 member gi3 service-instance 42
 member vfi VLAN42
exit
bridge-domain 80
 member gi3 service-instance 80
 member vfi VLAN80
exit
bridge-domain 11
 member gi3 service-instance 11
 member vfi VLAN11
exit
bridge-domain 12
 member gi3 service-instance 12
 member vfi VLAN12
exit
bridge-domain 13
 member gi3 service-instance 13
 member vfi VLAN13
exit
do wr
--------------------
ASR-SHP
int gi3
description *LINK TO SW-SHP*
 no ip address
 no shutdown
 service instance 13 ethernet
  encapsulation dot1q 13
  rewrite ingress tag pop 1 symmetric
  exi

 service instance 42 ethernet
  encapsulation dot1q 42
  rewrite ingress tag pop 1 symmetric
 exi

 service instance 43 ethernet
  encapsulation dot1q 43
  rewrite ingress tag pop 1 symmetric
  exi

 service instance 80 ethernet
  encapsulation dot1q 80
  rewrite ingress tag pop 1 symmetric
 exi

service instance 11 ethernet
  encapsulation dot1q 11
  rewrite ingress tag pop 1 symmetric
 exi

service instance 12 ethernet
  encapsulation dot1q 12
  rewrite ingress tag pop 1 symmetric
 exi
 exi
----------------
mpls label protocol ldp
multilink bundle-name authenticated
l2vpn vfi context VLAN13
 vpn id 13
 autodiscovery bgp signaling bgp
  ve id 16
  exi
  exi

l2vpn vfi context VLAN42
 vpn id 42
 autodiscovery bgp signaling bgp
  ve id 16
  exi
  exi

l2vpn vfi context VLAN43
 vpn id 43
 autodiscovery bgp signaling bgp
  ve id 16
  exi
  exi

l2vpn vfi context VLAN80
 vpn id 80
 autodiscovery bgp signaling bgp
  ve id 16
  exi
  exi
l2vpn vfi context VLAN11
 vpn id 11
 autodiscovery bgp signaling bgp
  ve id 16
  exi
  exi
l2vpn vfi context VLAN12
 vpn id 12
 autodiscovery bgp signaling bgp
  ve id 16
  exi
  exi
--------------

 bridge-domain 43
 member gi3 service-instance 43
 member vfi VLAN43
exit
bridge-domain 42
 member gi3 service-instance 42
 member vfi VLAN42
exit
bridge-domain 80
 member gi3 service-instance 80
 member vfi VLAN80
exit
bridge-domain 11
 member gi3 service-instance 11
 member vfi VLAN11
exit
bridge-domain 12
 member gi3 service-instance 12
 member vfi VLAN12
exit
bridge-domain 13
 member gi3 service-instance 13
 member vfi VLAN13
exit
do wr
============================
ASR-SGL
int gi4
description *LINK TO SW-sgl*
 no ip address
 no shutdown
 service instance 13 ethernet
  encapsulation dot1q 13
  rewrite ingress tag pop 1 symmetric
  exi

 service instance 42 ethernet
  encapsulation dot1q 42
  rewrite ingress tag pop 1 symmetric
 exi

 service instance 80 ethernet
  encapsulation dot1q 80
  rewrite ingress tag pop 1 symmetric
 exi

service instance 11 ethernet
  encapsulation dot1q 11
  rewrite ingress tag pop 1 symmetric
 exi

service instance 12 ethernet
  encapsulation dot1q 12
  rewrite ingress tag pop 1 symmetric
 exi
 exi
----------------
mpls label protocol ldp
multilink bundle-name authenticated
l2vpn vfi context VLAN13
 vpn id 13
 autodiscovery bgp signaling bgp
  ve id 15
  exi
  exi

l2vpn vfi context VLAN42
 vpn id 42
 autodiscovery bgp signaling bgp
  ve id 15
  exi
  exi

l2vpn vfi context VLAN43
 vpn id 43
 autodiscovery bgp signaling bgp
  ve id 15
  exi
  exi

l2vpn vfi context VLAN80
 vpn id 80
 autodiscovery bgp signaling bgp
  ve id 15
  exi
  exi
l2vpn vfi context VLAN11
 vpn id 11
 autodiscovery bgp signaling bgp
  ve id 15
  exi
  exi
l2vpn vfi context VLAN12
 vpn id 12
 autodiscovery bgp signaling bgp
  ve id 15
  exi
  exi
--------------
 bridge-domain 43
 member gi4 service-instance 43
 member vfi VLAN43
exit
bridge-domain 42
 member gi4 service-instance 42
 member vfi VLAN42
exit
bridge-domain 80
 member gi4 service-instance 80
 member vfi VLAN80
exit
bridge-domain 11
 member gi4 service-instance 11
 member vfi VLAN11
exit
bridge-domain 12
 member gi4 service-instance 12
 member vfi VLAN12
exit
do wr

==========
VERIFIKASI
sh mpls ldp ne
sh mpls l2transport summary
show bridge-domain 43
show bridge-domain 11
show mpls ip binding all
show l2vpn vfi name VLAN11

show l2vpn signaling rib detail
show l2vpn service all

=========================
KONFIG SWITCH
conf t
hostname CS2

vlan 43
nam V43
exi

vlan 42
nam V42
exi

vlan 80
nam V80
exi

vlan 11
nam V11
exi

vlan 12
nam V12
exi

int vlan 43
no shu
ip add    10.28.43.254 255.255.255.0
exi

int vlan 42
no shu
ip add    10.28.42.254 255.255.255.0
exi

int vlan 80
no shu
ip add    10.28.212.254 255.255.255.0
exi

int vlan 11
no shu
ip add    10.28.1.254 255.255.255.0
exi

int vlan 12
no shu
ip add    10.28.2.254 255.255.255.0
exi

int gi0/0
no shu
no ip add
switchport
switchport trunk encapsulation dot1q
switchport mode trunk
exi

int gi0/1
switchport mode acc
switchport access vlan 42
exi

int gi0/2
switchport mode acc
switchport access vlan 43
exi

Posting Komentar untuk "Cisco | MPLS - L2VPN/VPLS - Enterprise Network"

Posting Komentar
