OSPF - Totallly Stub Area

Totally Stub Area merupakan pengembangan Stub Area. Area ini tidak akan membawa informasi LSA type 3 yang membawa informasi network dari area lain. Yang beredar informasi network di area ini hanaya LSA type 1,2 dan 3. Kalau pun ada LSA type 3 itu hanya  membawa informasi default route saja (0.0.0.0/0).

Berikut konfigurasi masing-masing router.

Konfigurasi R7

hosname R7

interface Loopback7

 ip address 7.7.7.7 255.255.255.255

!

interface FastEthernet0/0

 ip address 10.10.10.7 255.255.255.0

router rip

 version 2

 network 7.0.0.0

 network 10.0.0.0

Konfigurasi R1

hostname R1

interface Loopback1

 ip address 1.1.1.1 255.255.255.255

 ip ospf 1 area 0

!

interface FastEthernet0/0

 ip address 11.11.11.1 255.255.255.0

 ip ospf 1 area 0

interface FastEthernet0/1

 ip address 10.10.10.1 255.255.255.0

router ospf 1

 redistribute rip metric-type 1 subnets

 network 1.1.1.1 0.0.0.0 area 0

 network 11.11.11.0 0.0.0.255 area 0

!

router rip

 version 2

 redistribute ospf 1 metric 1

 network 10.0.0.0

R1#

7Konfigurasi R9

hostname R9

interface Loopback9

 ip address 9.9.9.9 255.255.255.255

 ip ospf 1 area 0

!

interface FastEthernet0/0

 ip address 12.12.12.9 255.255.255.0

 ip ospf 1 area 0

!

interface FastEthernet0/1

 ip address 16.16.16.9 255.255.255.0

 ip ospf 1 area 1

router ospf 1

 area 1 stub no-summary

R9#

Konfigurasi R10

hostname R10

interface Loopback10

 ip address 10.10.10.10 255.255.255.255

 ip ospf 1 area 1

interface FastEthernet0/1

 ip address 16.16.16.10 255.255.255.0

 ip ospf 1 area 1

router ospf 1

 area 1 stub no-summary

R10#

Verfikasi routing table

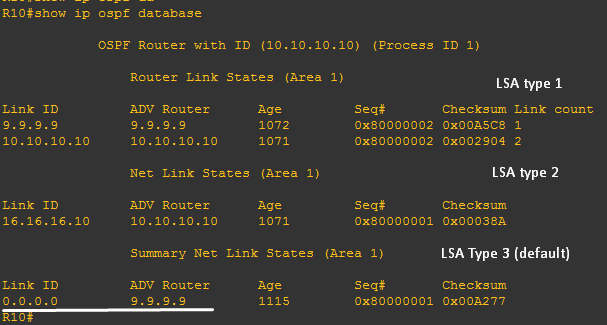

Verifkasi type LSA
